Información Básica.
Descripción de Producto
| Model NO. | AWS ER70S-6 | Spool/Reel | D100, D200, D270, D300, K300 |
| Shielded Gas | CO2 | Specification | 3tons/Pallet |
| Transport Package | OEM | Origin | CHINA |
| HS Code | 72292000 | Production Capacity | 2000tons Per Months |

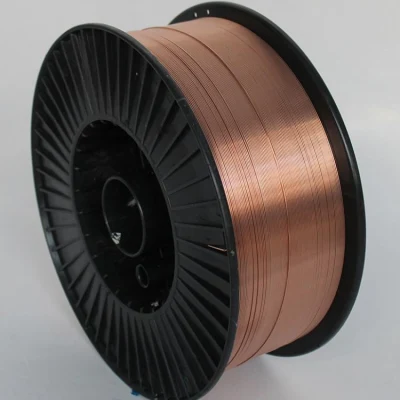

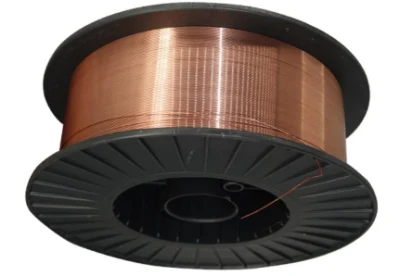

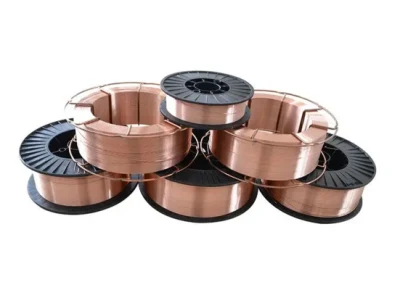

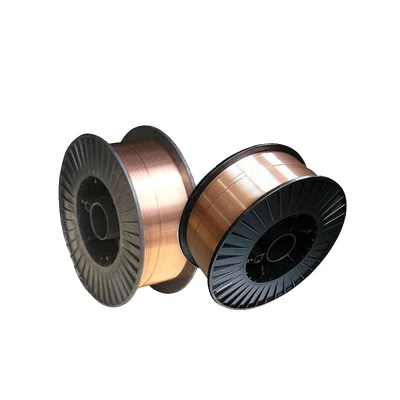

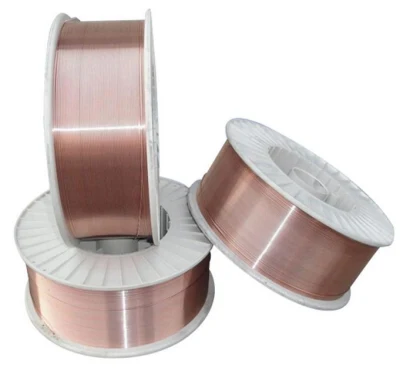

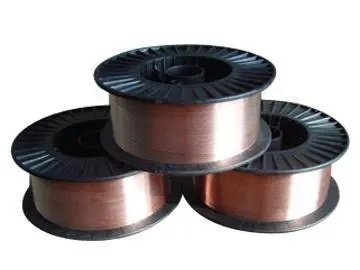

| Product Name | ER70S-6 CO2 gas shielded welding wires | ||
| Keywords | welding wire | ||
| Material | Stainless steel | ||
| Color | copper | ||
| Grade | ER70S-6 | ||
| Size | Available Diameters:0.8mm / 0.9mm/ 1.0mm / 1.2mm / 1.6mm / 2.0mm / 2.4mm etc.. | ||
| Weight | 1KG/2KG/6KG /7KG/10KG /15KG/20KG per spool, or by bundle | ||
| Explanation | It has strong resistance to surface oxidation and oil stains on the base material,and low sensitivity to pores. | ||
| Used | bridges, buildings, shipbuilding,machinery, automobiles, pressure vessels, as well as for welding plates and pipes | ||
Plant equipment:
Chemical omposition of welding wire:(%)
| C | Mn | Si | S | p | Cu | |
| standard value | 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤0.035 | ≤0.025 | ≤0.50 |
| sample value | 0.080 | 1.510 | 0.920 | 0.020 | 0.016 | 0.200 |
| C | Mn | Si | S | P | Cu |
| 0.070 | 1.500 | 0.760 | 0.014 | 0.015 | 0.150 |
| Tensile strength δb(MPa) | Yield Point δ0.2(Mpa) | Elongation δ5(%) | AKV Impact Value (J)(-30ºC) | Shielding gas | |
| Standard value | ≥500 | ≥420 | ≥22 | 27 | CO2 |
| Typical value | 558 | 472 | 27 | 98 | CO2 |
Application:CO2 gas shielded welding wire is mainly used in the welding of low carbon steel and 500Mpa grade alloy steel structure parts. Also used in all kinds of 500 Mpa grade steel board and pipe welding work. It is widely used in the area of vehicles, bridges, construction machinery, pressure vessel, engineering structures and container buildings etc.
Diameter of wire& reference current(DC+)
| Diameter of wire (mm) | Φ0.8 | Φ1.0 | Φ1.2 | Φ1.6 | |
| current (A) | 40-140 | 70-250 | 80-350 | 170-550 | |
| Arc voltage(V) | 16-21 | 17-27 | 18-30 | 23 | |
Qingdao Win Peak Metal Products Co., Ltd. is a professional production and sales of welding wire, welding rod comprehensive enterprises, the main products are: co2 protect welding wire, submerged arc welding wire, argon arc welding wire, flux-cored wire, welding electrode. Mainly used in Steel structure, container, automobile manufacturing, ship manufacturing, oil pipeline, pressure vessel, construction engineering, machinery manufacturing etc. Welding factory was Founded in 2010, covers an area of more than 30000 square meter, more than 200 employees, and passed the IS09001:2008 quality management system certification. In use, the welding gun wire feed is uniform, and the gun mouth is not blocked, which can be used for robot or automatic welding production line. The welding wire has the advantages of no copper removal, suitable stiffness relaxation, smooth wire feeding, low splash, high melting efficiency, ensuring the continuity of welding, extending the service life of welding machine accessories, and improving labor efficiency.
The main products exported to the United States, Japan, Vietnam, Thailand, Africa, the European Union and other countries and regions. Domestic sales to Fujian, Zhejiang, Jiangsu, Chongqing, Sichuan, Hubei, Henan, Hebei, Shandong and other places, well received by users.
