Información Básica.
No. de Modelo.
Er316L
tiempo de entrega
7-10 días laborables
Paquete de Transporte
5kg/Box
Especificación
0.8mm 1.0 mm 1.2mm 1.6mm
Marca Comercial
Xunzhuo
Origen
China
Código del HS
8311100000
Descripción de Producto
The weld metal is austenitic structure containing 19%Cr-12%Ni-2%Mo, which is excellent in corrosion resistance, heat resistance and crack resistance. Because Mo contains good corrosion resistance to acetic acid, sulfurous acid, phosphoric acid and salts, especially against chloride ion pitting.Uses: Used for the welding of the same type of stainless steel, but also for the welding of high-chromium steel and dissimilar steel without heat treatment after welding.
Specific Parameters
Specific Parameters
Wire type | Specification | Wire tray | Weight |
MIG wire | Φ0.8-1.6mm | D100mm D200mm D270mm D300mm | 1kg 5kg 15kg 20kg |
TIG wire | Φ1.6-5.0mm | Straight wire length of 1m/root | 5kg 10kg |
Varieties | Deposited Metal Mechanical Properties | Wire Chemical Composition % | |||||||
Tensile strength | Elongation % | C | Si | Mn | Cr | Ni | Mo | other | |
ER308 | 607 | 41 | 0.040 | 0.34 | 1.82 | 20.13 | 9.50 | - | - |
ER308L | 578 | 42 | 0.024 | 0.42 | 1.65 | 20.10 | 10.33 | - | - |
ER308LSi | 585 | 39 | 0.020 | 0.70 | 1.47 | 20.11 | 10.50 | - | - |
We supply various styles of high quality austenitic stainless steel, ferritic stainless steel and bidirectional stainless steel welding wire. The product line includes GMAW, GTAW, SMAW etc.
Popular types:ER308, ER308L,ER308LSi, ER309, ER309L, ER309LSi, ER316, ER316L, ER316LSi.

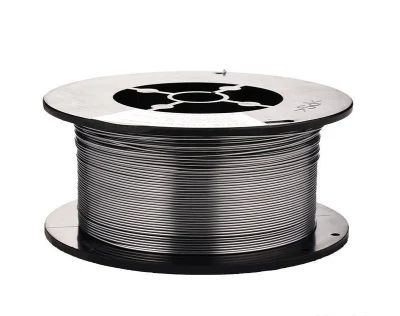

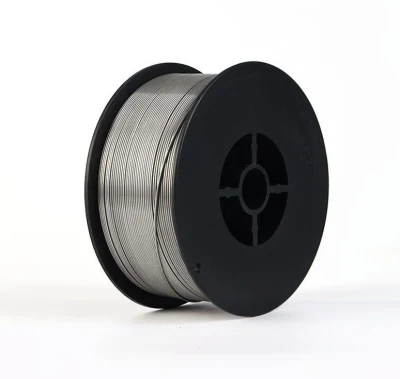

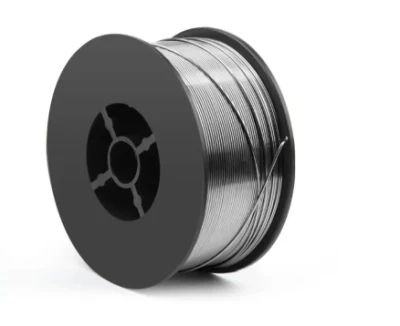

Product picturesWire diameter: 0.8 - 1.6mm; 1.2 - 5.0mm; 2.4 - 5.0mm
Packing type: spool (D200, D270, D300, K300); drum (200KG, 250KG); coil (25KG); plastic tube (5KG, 10KG)
